5.2 Project Data

5.2.1    General Information



Project Name

Applicability

All projects

Definition

Name used for the project, if one is applicable

Units

Up to 50 alphanumeric characters

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Building Location

Applicability

All projects

Definition

Street address, city, state, and zip code

Units

Up to 50 alphanumeric characters on each of two lines

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Project Owner

Applicability

All projects

Definition

Owner(s) of the project or individual or organization for whom the building permit is sought; should include name, title, organization, email, and phone number

Units

Up to 50 alphanumeric characters

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Envelope Designer

Applicability

All projects

Definition

Person responsible for the building design; information should include name, title, organization, email, and phone number

Units

Up to 50 alphanumeric characters

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Mechanical Designer

Applicability

All projects

Definition

Person responsible for the mechanical design; information should include name, title, organization, email, and phone number

Units

Up to 50 alphanumeric characters

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Lighting Designer

Applicability

All projects

Definition

Person responsible for the lighting design; information should include name, title, organization, email, and phone number

Units

Up to 50 alphanumeric characters

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Documentation Author

Applicability

All projects

Definition

Person responsible for inputting building information and performing the compliance analysis; information should include name, title, organization, email, and phone number

Units

Up to 50 alphanumeric characters

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Date

Applicability

All projects

Definition

Date of completion of the compliance analysis or the date of its most-recent revision

Units

Date format

Input Restrictions

Input is optional for the proposed design

Standard Design

Not applicable



Compliance Type

Applicability

All projects

Definition

Type of compliance project (new construction, partial compliance or additions and alterations)

Units

List:

NewComplete: new construction project

NewEnvelope: new construction, partial compliance with envelope

NewEnvelopeAndLighting: new construction, partial compliance with envelope and lighting

NewEnvelopeAndPartialLighting: new construction, partial compliance with envelope and lighting compliance for some spaces

NewEnvelopeAndMechanical: new construction, partial compliance with mechanical and envelope only

NewMechanical: new construction, partial compliance with mechanical. This is the complement of a partial compliance with envelope and lighting, which should have already been performed.

NewMechanicalAndLighting: new construction, partial compliance with mechanical and lighting only. The building should have already passed an Envelope Only partial compliance.

NewMechanicalAndPartialLighting: new construction, partial compliance with mechanical and lighting compliance for some spaces. The building should have already passed an Envelope Only partial compliance.

ExistingAlteration: alteration project

ExistingAdditionAndAlteration: project with both additions and alterations

AdditionComplete: an addition modeled alone

AdditionEnvelope: an existing building with partial envelope compliance for a new addition

AdditionEnvelopeAndLighting: an existing building with partial envelope and lighting compliance for a new addition

AdditionEnvelopeAndPartialLighting: an addition to an existing building that includes the building envelope and lighting for some of the spaces. For the spaces with lighting defined in the proposed design, the space function type must be defined as well. For undefined spaces, the lighting status is “future” and both the proposed design and standard design are set to match the prescriptive lighting power limits.

AdditionEnvelopeAndMechanical: an addition modeled with as-designed envelope and mechanical components, but the interior lighting design has not yet been defined.  For this option, interior lighting must comply prescriptively.

AdditionMechanical: an addition modeled with the as-designed mechanical system, including any plant, system or zone level equipment, as well as ventilation. For this option, all envelope and lighting components are modeled as defined by the user in both the proposed design and baseline designs.

AdditionMechanicalAndLighting: an addition modeled with as designed mechanical and lighting equipment. In this design, all building envelope components in the standard design are set to match those in the proposed design, since the envelope is assumed to have complied via a separate permit.

AdditionMechanicalAndPartialLighting: an addition modeled with as designed mechanical equipment and with lighting systems defined for part of the building. This model is the complement to the

Input Restrictions

As designed

Standard Design

Same as proposed

5.2.2    Existing Building Classification

Existing Building Number of Stories

Applicability

Additions and alterations

Definition

Total number of stories of the building

(For information and reporting purposes only)

Units

Integer

Input Restrictions

As designed

Standard Design

Not applicable

Existing Buildings

Not applicable



Existing Building Floor Area

Applicability

Additions and alterations

Definition

Total floor area of an existing building, including any additions, if present

(For information and reporting purposes only)

Units

ft2

Input Restrictions

As designed

Standard Design

Not applicable

Existing Buildings

Not applicable

5.2.3    Partial Compliance Model Input Classification

Earlier sections of this reference manual have described the available partial compliance scenarios. The compliance software that supports these scenarios must define the inputs for both the proposed design and the standard design for unpermitted portions of the building.

1) Envelope Only: The user specifies the building envelope and all spaces, space types, and thermal zones in the building. The standard design rules are applied to the envelope components. For all lighting and HVAC inputs, the proposed design values are prescribed and follow the rules for the standard design, including modeling the same HVAC systems determined using the new construction HVAC system map in Section 5.1.2.

2) Envelope and Lighting Only: The user specifies the building envelope, spaces, space types, thermal zones and all lighting, and any daylighting, where present. For all HVAC inputs, the proposed design values are prescribed and follow the rules for the standard design, including modeling the same HVAC systems determined using the new construction HVAC system map in Section 5.1.2.

3) Envelope and Mechanical Only: This compliance option assumes that the building will use separately permitted prescriptive lighting compliance. The user specifies the building envelope, spaces, space types, thermal zones, and mechanical systems in the building. For all lighting inputs, the proposed design values are prescribed and follow the rules for the standard design.

4) Envelope and Partial Lighting Only: This compliance option is used for projects where the building envelope is defined, and where the lighting in some of the spaces is defined. The user specifies the building envelope, all spaces, space types, thermal zones, and lighting for spaces with lighting systems defined, and any daylighting, where present. For all HVAC inputs, the proposed design values are prescribed and follow the rules for the standard design, including modeling the same HVAC systems determined using the new construction HVAC system map in Section 5.1.2.

5) Mechanical Only: This compliance option assumes that the building has already been permitted for envelope and lighting. The envelope and lighting systems for both the proposed design and the standard design are modeled as designed. (For example, if the building vertical fenestration area exceeds prescriptive WWR limits, the limits are NOT applied to the standard design. Instead, the actual vertical fenestration area is used.)  The mechanical systems of the proposed model are described as-designed, and the new construction rules and system map are applied to the HVAC system of the standard design.

6) Mechanical and Lighting Only: This compliance option assumes that the building has already been permitted for envelope compliance. All spaces and space types must be defined by the user, and all envelope components for the proposed design are “as designed” (must be defined by the user). The standard design lighting and HVAC components are set to match the standard design.

7) Mechanical and Partial Lighting Compliance: This compliance option assumes that the building has already been permitted for Envelope and Partial Lighting compliance (option 3 above). The envelope components, spaces and space types, and permitted lighting spaces are entered as designed for the proposed design and, for these components, the standard design is set to be the same as the proposed. For the other components as part of the permit application, the mechanical systems and new lighting systems are entered by the user for the proposed design as designed, and the standard design components for the mechanical (HVAC) system and new lighting systems are defined by the new construction standard design rules.

8) Envelope and Partial Mechanical: For projects where mechanical systems are not defined for all thermal zones. When the “HVAC is Unknown” checkbox is enabled at the thermal zone, the proposed mechanical system for that zone will be defaulted to match the standard design. Possible uses for this compliance option include “core and shell” projects and existing/addition/alteration projects with unknown existing mechanical equipment.

Building descriptors with inputs for both the proposed design and standard design that are restricted to prescribed values (for example, equipment performance curves) follow the same rules for prescribed values for any of the partial compliance projects listed above.

5.2.4    Building Model Classification

The structure of this manual supports multiple purposes and multiple baselines. For example, a baseline used for Title 24 compliance might be separate from a baseline used for green building ratings or beyond code programs. A building descriptor “purpose” could be used to identify different baselines but is not within the scope of this manual.



Space Classification Type

Applicability

All projects

Definition

One of two available classification methods for identifying the function of the building or the functions of spaces within the building, which in turn determine energy-related requirements for the standard design. Appendix 5.4A lists the building classifications that are available under the area category method.

The Area Category method uses a separate space classification for each space in the building according to its function.

Units

List (See Appendix 5.4)

Input Restrictions

For multiuse buildings, the building may be divided and a different building classification may be assigned to each part.

Standard Design

Same as proposed

5.2.5    Geographic and Climate Data

The following data needs to be specified or derived in some manner. Software developers may use any acceptable method to determine the data. For California, city, state, and county are required to determine climate data from the available data in Reference Appendix JA2.



Zip Code

Applicability

All projects

Definition

California postal designation

Units

List (see Appendix 5.4)

Input Restrictions

None

Standard Design

Not applicable



Latitude

Applicability

All projects

Definition

The latitude of the project site

Units

Degrees (°)

Input Restrictions

None

Standard Design

Latitude of representative city from Reference Appendix JA2



Longitude

Applicability

All projects

Definition

The longitude of the project site

Units

Degrees (°)

Input Restrictions

None

Standard Design

Longitude of representative city from Reference Appendix JA2



Elevation

Applicability

All projects

Definition

The height of the building site above sea level

Units

Feet (ft)

Input Restrictions

None

Standard Design

Elevation of representative city from Reference Appendix JA2



California Climate Zone

Applicability

All projects

Definition

One of the 16 California climate zones

Units

List (see Reference Appendix JA2)

Input Restrictions

None

Standard Design

Same as proposed



City

Applicability

All projects

Definition

The city where the project is located

Units

Alphanumeric string

Input Restrictions

None

Standard Design

Representative city from Reference Appendix JA2



Design Day Data

Applicability

All projects

Definition

A data structure indicating design day information used for the sizing of the proposed system. Note: this information may not necessarily match the information used in the annual compliance simulation.

Units

Data structure: contains the following:

Design DB (0.5%), mean coincident wet-bulb, eaily range, day of year

Input Restrictions

The design day information is taken from one of the 86 pre-defined California weather files, for the location within the same climate zone that is closest to the proposed building’s location. (This is not input by the user.)

Standard Design

Not applicable



Weather File

Applicability

All projects

Definition

The hourly (i.e., 8,760 hour per year) weather data to be used in performing the building energy simulations. Weather data must include outside dry-bulb temperature, outside wet-bulb temperature, atmospheric pressure, wind speed, wind direction, cloud amount, cloud type (or total horizontal solar and total direct normal solar), clearness number, ground temperature, humidity ratio, density of air, and specific enthalpy.

Units

Data file

Input Restrictions

The weather file selected shall be in the same climate zone as the proposed design. If multiple weather files exist for one climate zone then the weather file closest in distance to the proposed design and in the same climate zone shall be used.

Standard Design

Weather data shall be the same for both the proposed design and standard design.



Ground Reflectance

Applicability

All Projects

Definition

Ground reflectance affects daylighting calculations and solar gain. The reflectance can be specified as a constant for the entire period of the energy simulation or it may be scheduled, which can account for snow cover in the winter.

Units

Data structure: schedule, fraction

Input Restrictions

Prescribed. The weather file determines the ground reflectance. The ground reflectance shall be set to 0.2 when the snow depth is 0 or undefined, and set to 0.6 when the snow depth is greater than 0.

Standard Design

Same as proposed



Local Terrain

Applicability

All projects

Definition

An indication of how the local terrain shields the building from the prevailing wind. Estimates of this effect are provided in the ASHRAE Handbook of Fundamentals.

Units

List: the list shall contain only the following choices:

Description

Exponent (α)

Boundary layer thickness, δ (m)

Flat, open country

0.14

270

Rough, wooded country, Suburbs

0.22

370

Towns and cities

0.33

460

Ocean

0.10

210

Urban, industrial, forest

0.22

370

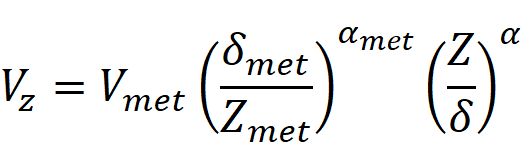

The exponent and boundary layer are used in the following equation to adjust the local wind speed:

Where:

The wind speed profile coefficients

Input Restrictions

Weather data should be representative of the long term conditions at the site

Standard Design

The standard design terrain should be equal to the proposed design

5.2.6    Site Characteristics

Shading of Building Site

Applicability

All projects

Definition

Shading of building fenestration, roofs, or walls by surrounding terrain, vegetation, and the building itself

Units

Data structure

Input Restrictions

The default and fixed value is for the site to be unshaded. External shading from other buildings or other objects is not modeled for Title 24 compliance in the ACM. Building self-shading is accounted for using the detailed geometry method.

Standard Design

The proposed design and standard design are modeled with identical assumptions regarding shading of the building site.



Site Fuel Source

Applicability

All projects

Definition

The fuel source that is available at the site for water heating, space heating or other fuel purposes. For most buildings connected to a utility service, this will be natural gas.

Units

List

Input Restrictions

The following choices are available:

Natural Gas

Propane

Standard Design

Natural gas



5.2.7    Calendar

Year for Analysis

Applicability

All projects

Definition

The calendar year to be used for the annual energy simulations. This input determines the correspondence between days of the week, and the days on which weather events on the weather tape occur and has no other impact.

Units

List: choose a year (other than a leap year)

Input Restrictions

Use year 1991

Standard Design

Same calendar year as the proposed design



Schedule of Holidays

Applicability

All projects

Definition

A list of dates on which holidays are observed and on which holiday schedules are used in the simulations

Units

Data structure

Input Restrictions

The following ten holidays represent the prescribed set. When a holiday falls on a Saturday, the holiday is observed on the Friday preceding the Saturday. If the holiday falls on a Sunday, the holiday is observed on the following Monday.

             New Year’s Day                    January 1

             Martin Luther King Day                         Third Monday in January

             Presidents Day                                 Third Monday in February

             Memorial Day                                        Last Monday in May

             Independence Day                    July 4

             Labor Day                                        First Monday in September

             Columbus Day                                 Second Monday in October

             Veterans Day                                        November 11

             Thanksgiving Day                    Fourth Thursday in November

             Christmas Day                                 December 25

Standard Design

The standard design shall observe the same holidays specified for the proposed design.
